Precision That Performs. Productivity That Delivers.

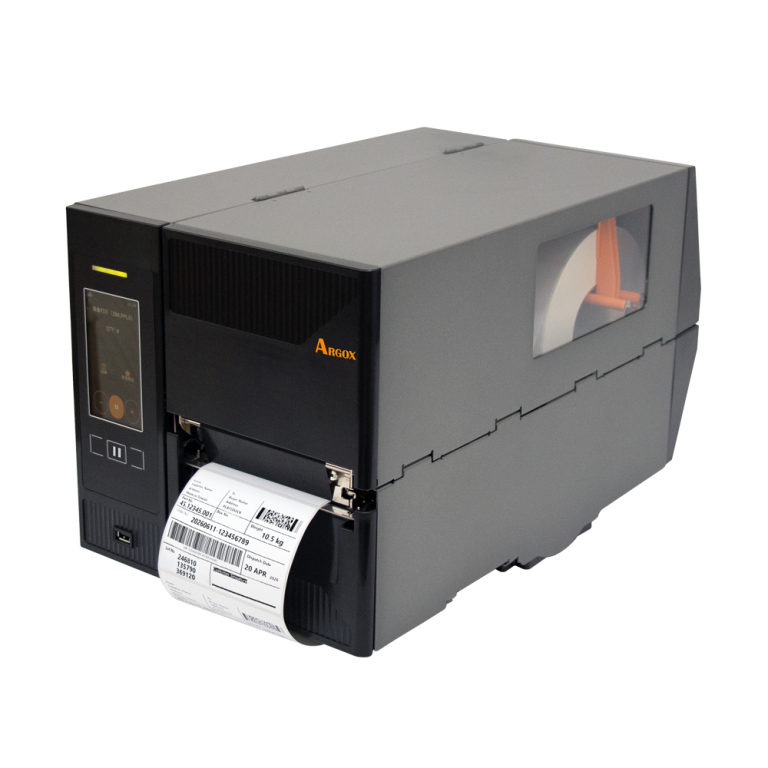

The ARGOX AIP-340 industrial barcode printer is designed to balance printing efficiency and clarity for demanding industrial label applications. With 300 dpi print resolution and speeds of up to 12 ips, it is well suited for manufacturing, warehousing, logistics, and product identification applications requiring clear barcodes, text, and graphics.
Featuring an intuitive 4.3-inch full-color touchscreen, versatile connectivity options, and support for ribbons up to 450 meters, the AIP-340 integrates flexibly with existing systems while helping reduce ribbon replacement during extended printing operations.
Discover the key features and applications of the ARGOX AIP Series industrial barcode printers.
From intuitive operation and high-speed printing to clear, stable label output and flexible system integration, the AIP-340 supports a wide range of industrial barcode and label printing requirements.
See it clearly. Operate it easily.
The AIP-340 features a 4.3-inch full-color touchscreen that provides a clear and intuitive user interface for quick printer setup and everyday operation. Simplified workflows help improve on-site efficiency and keep operations running smoothly.
Speed and clarity in one powerful solution.
With print speeds of up to 12 ips and 300 dpi print resolution, the AIP-340 balances printing efficiency with clear output for high-volume and continuous barcode and label printing.
From product labels and warehouse inventory labels to shipping barcodes, it delivers efficient and stable printing performance for demanding daily operations.
Clear output for barcodes, text, and graphics.
The AIP-340 provides 300 dpi print resolution for industrial label applications requiring clear barcodes, text, and graphics, delivering consistent print quality while maintaining efficient output.
From product and inventory labels to shipping and identification labels, the AIP-340 supports a wide range of workflows and label content requirements.
Versatile connectivity for greater integration flexibility.
The AIP-340 provides USB Host, USB Device, RS-232, and Ethernet interfaces, with optional Bluetooth, Wi-Fi, and GPIO connectivity for flexible deployment across enterprise IT, manufacturing, warehousing, and automation environments.
Support for PPLA, PPLB, and PPLZ printer languages provides additional flexibility when integrating the printer with existing systems and applications, helping simplify equipment deployment and system migration.
Fewer ribbon changes for more efficient extended printing.
The AIP-340 supports both direct thermal and thermal transfer printing and accommodates ribbons up to 450 meters, helping reduce ribbon replacement frequency during extended printing operations.
Support for roll-feed, die-cut, continuous, fan-fold, black mark, tags, and other media types provides flexibility for a wide range of barcode and label printing requirements.
From manufacturing and warehouse management to logistics operations, the AIP-340 supports high-volume barcode, label, and product identification workflows.
Product identification, process tracking, component labels, and barcode traceability.
Inventory labels, location identification, material labeling, and inventory management.
Distribution labels, shipping labels, package identification, and logistics barcode printing.
Product labels, serial number labels, barcode identification, and product traceability.
The ARGOX AIP-340 combines 300 dpi print resolution, speeds of up to 12 ips, a 4.3-inch full-color touchscreen, versatile connectivity, and support for ribbons up to 450 meters, making it suitable for high-volume barcode and label printing across manufacturing, warehousing, logistics, and product identification applications.
| Printing Method | Direct Thermal & Thermal Transfer |
| Printing Resolution | 300 dpi (12 dots/mm) |
| Printing Speed | Max. 12 ips (Default: 5 ips) |
| Printing Length | Max. 74" (1880 mm) |
| Printing Width | Max. 4.09" (104 mm) |
| Memory | 256MB DRAM / 512MB Flash |
| CPU Type | 32 bit RISC microprocessor |
| Sensors | Media Reflective Sensors (Movable Upper & Lower) ×2, Head-Open Sensor, Ribbon-End Sensor, Transmissive (Gap) Sensor |
| Operation Interface | 4.3" Touch LED indicator ×1 Button ×3 |
| Communication Interface | USB host ×2, USB device, RS-232, Ethernet, GPIO optional, BT/Wi-Fi optional |
| Fonts | 5 fonts; expandable 24×24; 0/90/180/270° rotation; downloadable soft fonts; Windows TrueType support |
| Wireless Network Security | N/A |
| 1D Barcodes | UPC-A/E, JAN/EAN, Code39/93/128, GS1-128, Codabar, ITF, MSI, POSTNET, GS1 DataBar family |
| 2D Barcodes | QR Code, PDF417 (including MicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode |
| Graphics | PPLA: PCX, BMP, IMG, HEX, GDI; PPLB: PCX, BMP, Binary raster, GDI; PPLZ: GRF, Hex, GDI |
| Emulation | PPLZ, PPLB, PPLA |
| Label Editing Software | BarTender® from Seagull Scientific; ArgoDesigner; iLabelPrint+ |
| Software Utility | Printer Tool |
| Drivers | Argox Seagull Driver (Win7/8/10/11); Linux, macOS, RPi Printer Driver |
| Media Type | Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper |
| Media | Max width 4.48" (118 mm); min 1" (25.4 mm); thickness 0.0025"–0.01"; 6" OD/1.5" core or 8" OD/3" core |
| Ribbon | 450 m; 1" core |
| Drop Rating | N/A |
| Printer Dimensions | (Flat)W 270.1 mm × H 279.6 mm × D/L 480.32 mm (Tilt)W 270.1 mm × H 279.6 mm × D/L 497.27 mm |
| Printer Weight | 13.2 +/- 0.2 kg |
| Power Source | Internal Universal Switching Power Supply; input voltage 100–240V, 50–60Hz |
| Battery | — |
| Operation Environment | Operating: 40°F–104°F (4°C–40°C), 0–90% RH; Storage: -4°F–122°F (-20°C–50°C) |
| Real Time Clock | Standard |
| Standard Accessories | N/A |
| Optional Items | Guillotine cutter, Rotary cutter, Peeler, Internal Rewinder, BT/WLAN, GPIO, External rewinder |
| Agency Listing | CE, CB, cULus, FCC, RoHS, BSMI, CCC, Energy Star |
| Attention | *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. |
Design and print labels anywhere with iLabelPrint+. Optimized for ARGOX printers, it offers flexible connectivity for both Windows and mobile users.
Barcode editing software
Support Windows 10 (32-bit ) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit).
Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Barcode editing software
Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016
Barcode editing software
Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008
Printer setup software
Supports Windows XP or later, and requires .Net Framework 3.5
Font tool
This tool software can use true type font (TTF) and printer fonts.
Supports Windows XP or later versions
For use with additional printer settings.
Supports Windows XP or later versions
Supports Java and C# programming languages
Supports Windows/Android/Linux operating platforms (different programming languages have different support ranges, please refer to the readme.html in the SDK for details)
Supports PPLB, PPLZ emulation.
iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi, USB OTG connection on Android .
iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi connection on iOS.
