Intuitive 4.3" Full-Color Touchscreen
Fewer Steps. More Efficiency.
The AIP-640 features a 4.3-inch touchscreen with one LED indicator and three buttons, providing an intuitive interface for printer operation.
AIP Series
Product Categories
Product Tags (multiple selection)
- Printer-Cerner-certification
- Printer-Direct-thermal
- Printer-Linerless
- Printer-Mobile printer
- Printer-Printing-width-2"
- Printer-Printing-width-3"
- Printer-Printing-width-4"
- Printer-Printing-width-6"
- Printer-Ribbon-length-100m
- Printer-Ribbon-length-300m
- Printer-Ribbon-length-360m
- Printer-Ribbon-length-450m
-

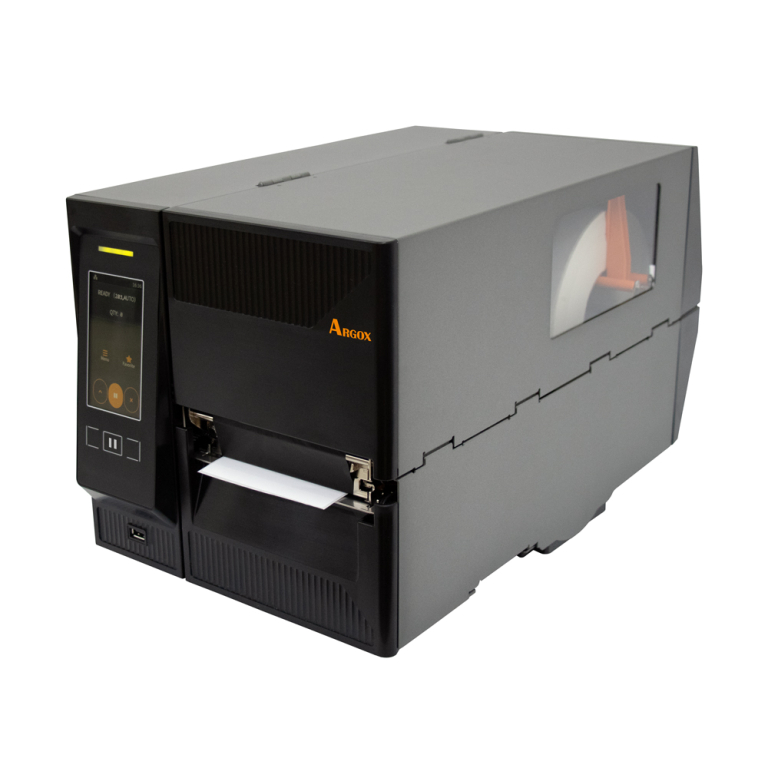

AIP-640 Industrial Barcode Printer
Precision That Performs. Productivity That Delivers.
The ARGOX AIP-640 industrial barcode printer features 600 dpi (24 dots/mm) resolution and printing speeds up to 6 ips. With a 4.3-inch full-color touchscreen, ±0.5 mm high-precision label positioning, flexible communication interfaces, and support for a 450 m ribbon, the AIP-640 delivers precise industrial label printing.
AIP Series Product Video
Discover the features and applications of the ARGOX AIP Series industrial barcode printers.
600 dpi Print Resolution6 ips Maximum Print Speed±0.5 mm Label Positioning Accuracy450 m Ribbon CapacityAIP-640 Key Features
Combining 600 dpi high-resolution printing, precise label positioning, flexible system integration, and industrial printing performance, the AIP-640 is designed for applications that demand highly detailed barcode and label output.
High-Performance Industrial Printing – Up to 6 ips
Not Just Speed. Built for Stability.
The AIP-640 delivers printing speeds up to 6 ips with a default speed of 3 ips, together with 600 dpi (24 dots/mm) resolution.
The AIP Series offers 203, 300, and 600 dpi models for different barcode, text, and label-detail requirements. The AIP-640 provides 600 dpi (24 dots/mm) resolution, with a maximum printing width of 4.09" (104 mm) and a maximum printing length of 40" (1016 mm).
±0.5 mm High-Precision Label Positioning
From micro labels to high-density barcodes, the AIP Series delivers precise positioning.
The AIP Series delivers ±0.5 mm high-precision label positioning for precise label output across different printing requirements.
Flexible Connectivity for Easy System Integration
For greater integration flexibility.

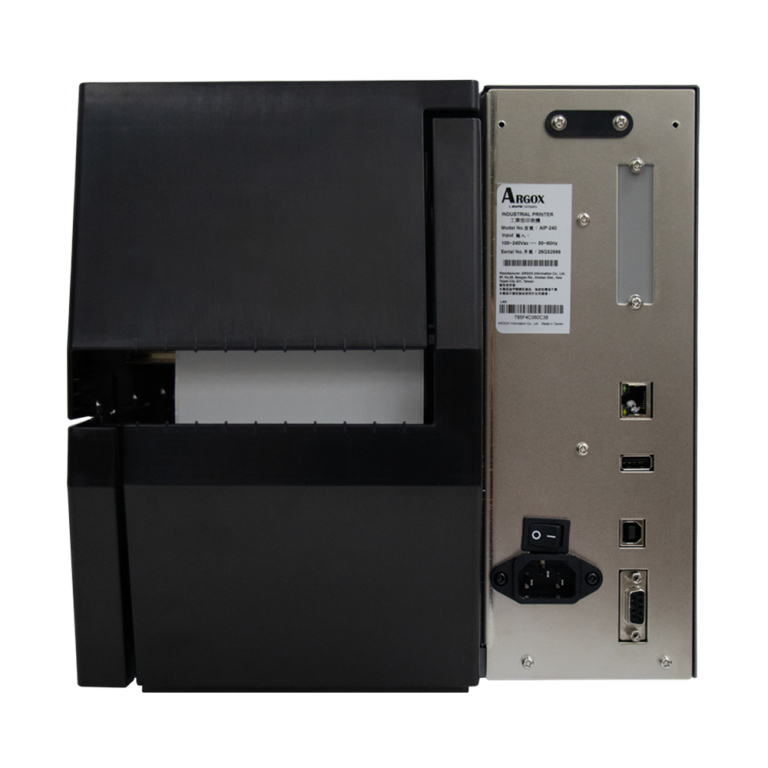

The AIP-640 supports USB host ×2, USB device, RS-232, and Ethernet, with optional GPIO and BT/Wi-Fi connectivity.
USB ×2 StandardUSB Device StandardRS-232 StandardEthernet StandardWi-Fi OptionalBluetooth OptionalGPIO OptionalThe AIP-640 also supports PPLZ, PPLB, and PPLA emulations for flexible integration with different printing systems and existing application environments.

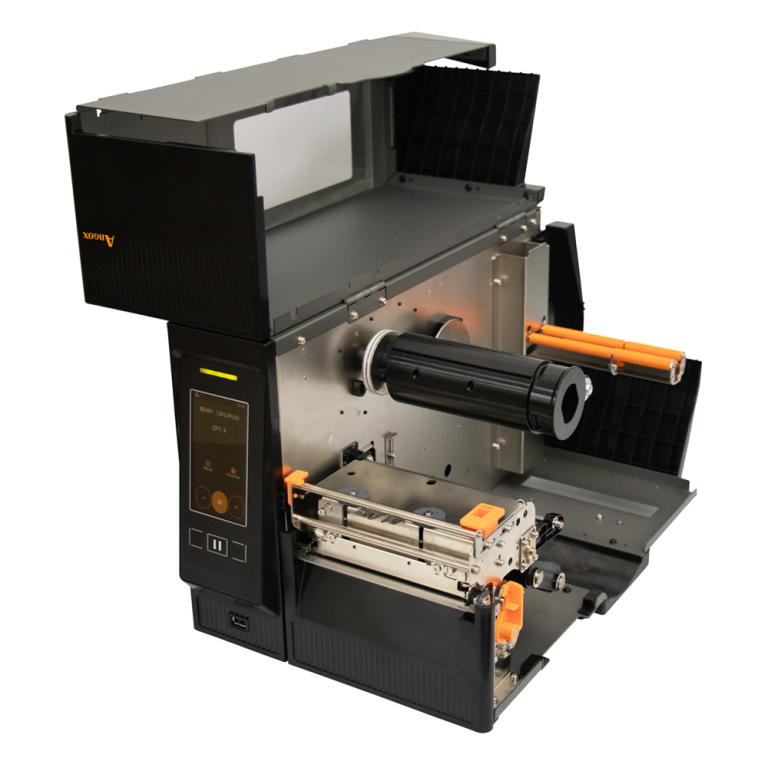

Supports a 450 m Ribbon
Fewer Changes. More Efficient Printing.
Printing Method Direct ThermalPrinting Method Thermal TransferRibbon Length 450 mRibbon Core 1"The AIP-640 supports DT/TT printing and a 450 m ribbon with a 1" core, helping reduce ribbon replacement frequency during extended and continuous printing operations.
Supported media types include roll-feed, die-cut, continuous, fan-fold, black mark, tags, and tickets in thermal paper or plain paper.
Designed for High-Resolution Industrial Labeling Applications
With 600 dpi high-resolution printing, the AIP-640 is designed for industrial applications that require detailed text, dense barcodes, and precise label output.
Manufacturing
Detailed product labeling, component identification, process labels, and barcode tracking.
Warehousing
Inventory labels, location identification, material labeling, and inventory management.
Logistics
Shipping labels, parcel identification, delivery labels, and logistics barcode printing.
Product Identification
Detailed product labels, serial number labels, high-density barcodes, and traceability labeling.
AIP-640 – 600 dpi Industrial Barcode Printer
With 600 dpi (24 dots/mm) resolution, printing speeds up to 6 ips, a 4.3-inch full-color touchscreen, ±0.5 mm high-precision label positioning, flexible connectivity, and 450 m ribbon support, the AIP-640 brings together precision and industrial printing performance.
* ±0.5 mm positioning accuracy under specific conditions.
-
Printing Method Direct Thermal & Thermal Transfer Printing Resolution 600 dpi (24 dots/mm) Printing Speed Max. 6 ips (Default: 3 ips) Printing Length Max. 40" (1016 mm) Printing Width Max. 4.09" (104 mm) Memory 256MB DRAM / 512MB Flash CPU Type 32 bit RISC microprocessor Sensors Media Reflective Sensors (Movable Upper & Lower) ×2, Head-Open Sensor, Ribbon-End Sensor, Transmissive (Gap) Sensor Operation Interface 4.3" Touch
LED indicator ×1
Button ×3Communication Interface USB host ×2, USB device, RS-232, Ethernet, GPIO optional, BT/Wi-Fi optional Fonts 5 fonts; expandable 24×24; 0/90/180/270° rotation; downloadable soft fonts; Windows TrueType support Wireless Network Security N/A 1D Barcodes UPC-A/E, JAN/EAN, Code39/93/128, GS1-128, Codabar, ITF, MSI, POSTNET, GS1 DataBar family 2D Barcodes QR Code, PDF417 (including MicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode Graphics PPLA: PCX, BMP, IMG, HEX, GDI; PPLB: PCX, BMP, Binary raster, GDI; PPLZ: GRF, Hex, GDI Emulation PPLZ, PPLB, PPLA Label Editing Software BarTender® from Seagull Scientific; ArgoDesigner; iLabelPrint+ Software Utility Printer Tool Drivers Argox Seagull Driver (Win7/8/10/11); Linux, macOS, RPi Printer Driver Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper Media Max width 4.48" (118 mm); min 1" (25.4 mm); thickness 0.0025"–0.01"; 6" OD/1.5" core or 8" OD/3" core Ribbon 450 m; 1" core Drop Rating N/A Printer Dimensions (Flat)W 270.1 mm × H 279.6 mm × D/L 480.32 mm
(Tilt)W 270.1 mm × H 279.6 mm × D/L 497.27 mmPrinter Weight 13.2 +/- 0.2 kg Power Source Internal Universal Switching Power Supply; input voltage 100–240V, 50–60Hz Battery — Operation Environment Operating: 40°F–104°F (4°C–40°C), 0–90% RH; Storage: -4°F–122°F (-20°C–50°C) Real Time Clock Standard Standard Accessories N/A Optional Items Guillotine cutter, Rotary cutter, Peeler, Internal Rewinder, BT/WLAN, GPIO, External rewinder Agency Listing CE, CB, cULus, FCC, RoHS, BSMI, CCC, Energy Star Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
-
iLabelPrint+ for Windows
Design and print labels anywhere with iLabelPrint+. Optimized for ARGOX printers, it offers flexible connectivity for both Windows and mobile users.
-
ArgoBar_Pro_V2.18_32bits
Barcode editing software
Support Windows 10 (32-bit ) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit).
Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
BarTender 2022 R6
Barcode editing software
Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
Barcode editing software
Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
Printer Tool V1.1.1
Printer setup software
Supports Windows XP or later, and requires .Net Framework 3.5 -
Font Utility V3.04
Font tool
This tool software can use true type font (TTF) and printer fonts.
Supports Windows XP or later versions -
Printer Utility V4.37
For use with additional printer settings.
Supports Windows XP or later versions -
Argox SDK V1.4.0
Supports Java and C# programming languages
Supports Windows/Android/Linux operating platforms (different programming languages have different support ranges, please refer to the readme.html in the SDK for details)
Supports PPLB, PPLZ emulation. -
iLabelPrint+ Google Play
iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi, USB OTG connection on Android .
-
iLabelPrint+ App Store
iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi connection on iOS.
-
